X1 Pro Gen 4: Switching Between Options

Switching Between the Bottom Brackets

The Bottom Bracket Conversion Kit

The Bottom Bracket Conversion Kit allows you to move your kit from one frame type to another without purchasing a full new kit and is available on our website here or from any authorized reseller. The parts that you can expect to get are shown in the table below along with the cost breakdown. Each component is also available separately and can be requested if it's not available on our website.

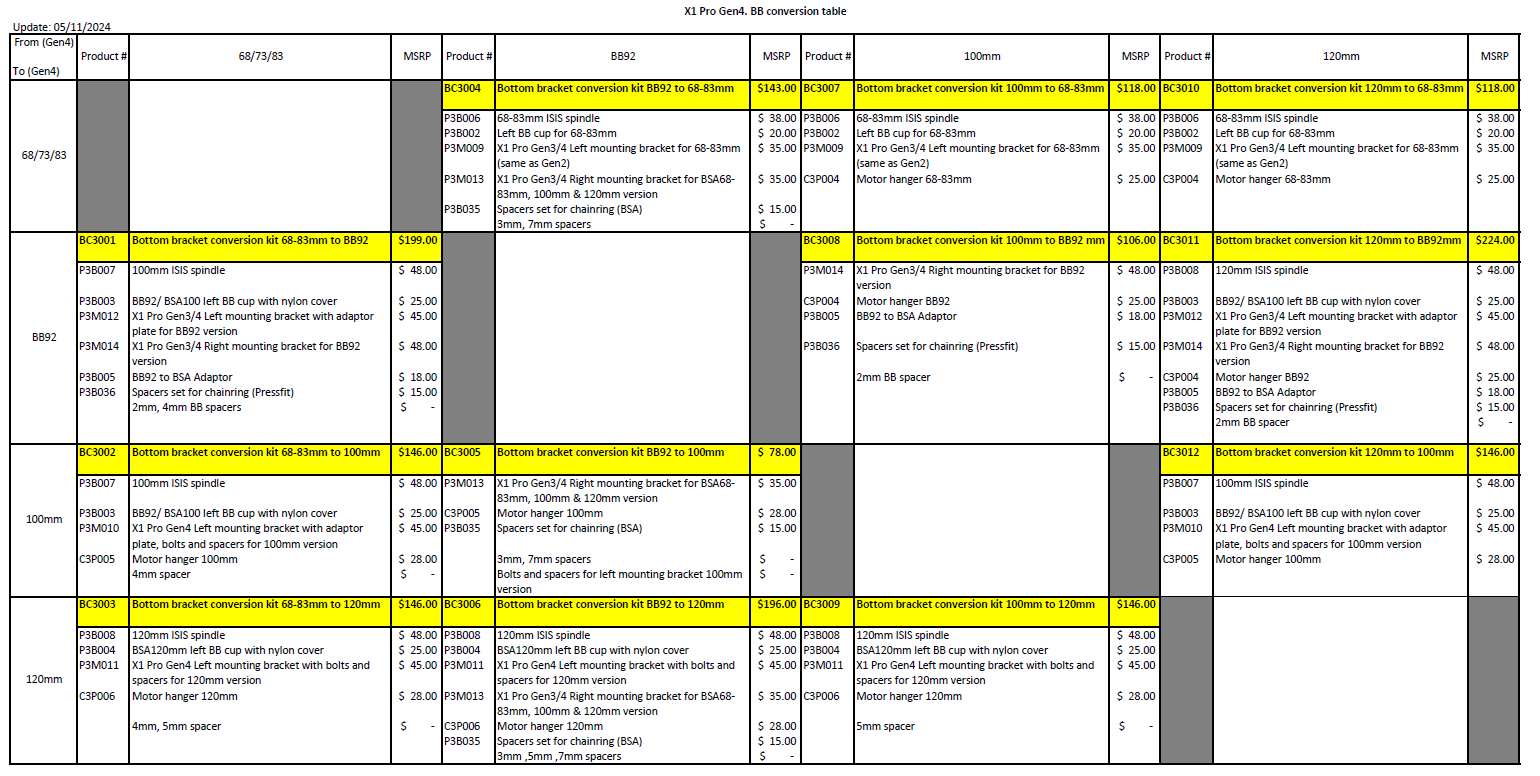

Parts List and Conversion Table

Switching Between Chainring Sizes

You can easily switch between any chainring options to customize your ride, ensuring optimal performance for your cycling needs. Additionally, if you prefer to use your own chainring, you can do so as long as it is compatible with the 104 BCD standard. This flexibility allows you to tailor your bike's gearing to suit different terrains and riding styles, enhancing your overall cycling experience. Below you will find the different combinations and that you may need to switch between various chainring sizes.

Chainring and Sprocket Set

Options:

32T with 53T motor chainring

38T with 63T motor chainring

40T with 72T motor chainring

https://www.cycmotor.com/product-page/chainring-and-sprocket-set-2-0

*Please note that when you change the 219H Chain Sprocket size you will need to buy a matching 219H Golden Motor chain.

104 BCD Narrow Wide Chainring

https://www.cycmotor.com/product-page/32t-narrow-wide-bike-chainring-104bcd-7075-t6

219H Chain Sprocket

https://www.cycmotor.com/product-page/219h-chain-sprocket

*Please* Note that when you change the 219H Chain Sprocket size you will need to buy a matching 219H Golden Motor chain.

https://www.cycmotor.com/product-page/219h-golden-chain-for-long-bracket
