SW102 & DS103 Display
General Information
- Both the SW102 & DS103 displays are compatible with 36V to 52V (nominal) batteries, and both have a day/night option.
- They share the same basic functions and settings.
- The main difference is in appearance and form-factor.
- The DS103 display allows you to see a larger variety in data with ease, such as your efficiency and human power and is a colour display.
- The SW102 display is small and stealthy, giving a minimalistic look.
- Firmware updated, both displays have 3, 5 & 9 assist levels to choose from. (01/03/2023). 3 assist levels are default.
- User manuals contain all information including mounting, functions, features, pin-layouts, and specifications.
- Not compatible with ASI controllers or old stock controllers.
- Both the SW102 & DS103 displays have IP65 waterproof rating.
- Both the SW102 & DS103 displays are a must for X-Series controllers.
- The ODO is tied to the display. If a user receives a new display, the ODO will be reset.
SW102 Display Product Details
Product Name
Intelligent OLED display, model: SW102
Firmware: CYC MOTOR LTD specific
Features
- Minimalist design and process
- High brightness, high contrast 1.3-inch monochromatic OLED screen
- Excellent outdoor design with IP65 waterproof rating
Dimensions & Materials
Materials
Product shell - ABS + PC plastic
Transparent window - 2.5D Tempered glass
Dimensions
L 110mm x W 68.2mm x H 68mm
Electrical Specifications
- Power supply: DC 36V / 48V / 52V
- Rated current: 12mA
- Shutdown leakage current: <1uA
- Screen specification: 1.3" OLED (64*128 dots)
- Communication method: UART (default)
- Operating temperature: -20°C ~ 60°C
- Storage temperature: -30°C ~ 80°C
- Waterproof level: IP65

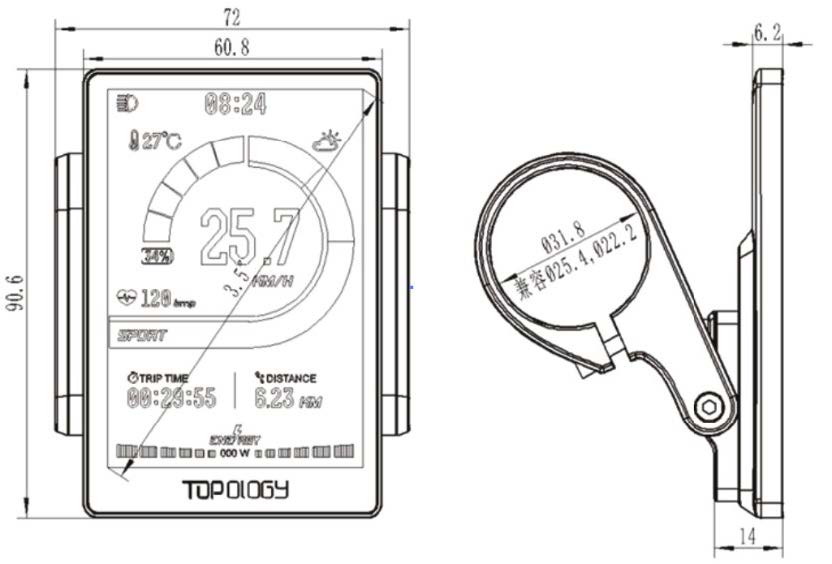

DS103 Display Product Details
Product Name
Intelligent LCS display, model: DS103
Firmware: CYC MOTOR LTD specific
Features
- Minimalist design and process
- High brightness, high contrast 1.3-inch monochromatic OLED screen
- Excellent outdoor design with IP65 waterproof rating
Dimensions & Materials
Materials
Product shell - ABS + PC plastic
Transparent window - 2.5D Tempered glass
Dimensions
L 110mm x W 68.2mm x H 68mm
Electrical Specifications
- Power supply: DC 24V / 36V / 48V / 52V
- Rated current: 30ma / 36V
- Shutdown leakage current: <1uA
- Screen specification: 3.5" coloured TFT (480*320 pixels)
- Communication method: UART (default)
- Operating temperature: -20°C ~ 60°C
- Storage temperature: -30°C ~ 80°C
- Waterproof level: IP65
Power Supply
DC 72V (For X1 Pro Gen 3 only)
Forget Password
If a customer has set up a password for their display and have forgotten it, the customer will need to send the display back to fix it. This fix can be done in-house.
They have unlimited attempts to guess their password. After 3 incorrect attempts, the display will shut down. They can simply turn it back on and try again.
Compatibility
SW102 | DS103 | |
Battery voltage (nominal) | 36V - 52V | 36V - 52V |
Supported handlebars | 24mm | 24mm - 32mm |
Controller compatibility | X6 / X6P | X6 / X6P |
Latest Firmware
- SW102-2
- Latest: V1.1.2
- Old: V1.1.1
- DS103
- Latest: V2.1.16.2
- Old: V2.1.16.0 or V2.1.16.1.5
Switching Modes
It's possible to switch between RACE and STREET mode on both the SW102 & DS103 displays. The setting is located on the main settings page. You can enter into the main settings page by long pressing the MENU button within 15 seconds of turning on the display.
To enter the main settings on the display, please hold down on the MENU button within the first 15 seconds of turning on the kit. Alternatively, you can do this on the Ride Control app as well. You can then also program the different levels for RACE and STREET mode in the "Modes & Levels" settings page on the app.
Walking Mode
To enable walking mode, go into assist level 1 by pressing up on the display's joycon. Then press and hold down for 3 seconds to activate walking mode.
If walking mode is not working as intended, please check if the motor is in gear before activating walking mode.
