Photon: Pin Layouts
Photon Pin Layouts

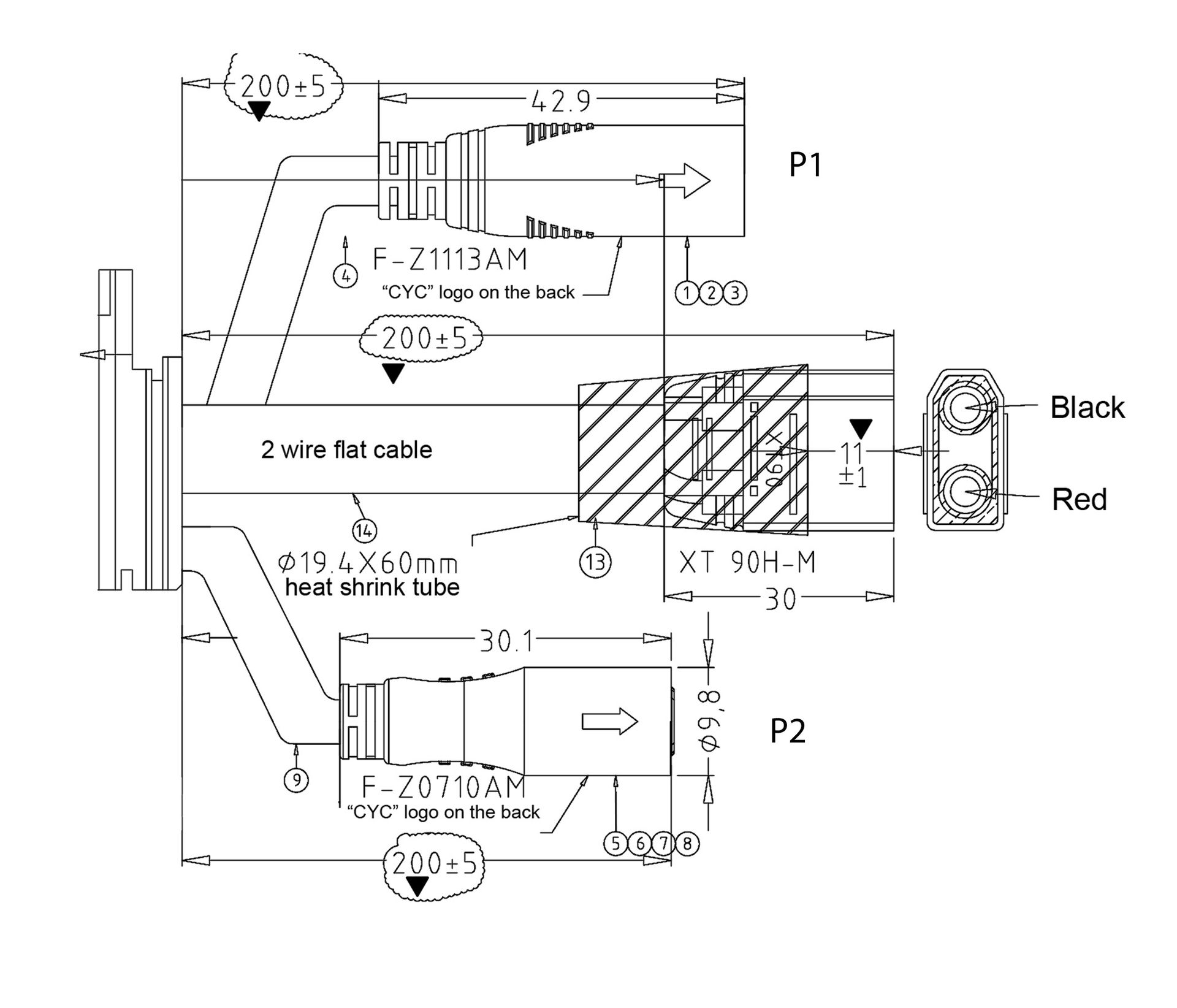

Photon Controller Pin Layout
Peripheral Wire Connection (P1)
Connection Number | Display Connection | Wire Color |
1 | GROUND | Black |
2 | THROTTLE | Brown |
3 | 5V DC | Purple |
4 | VCC | Red |
5 | KEY LOCK | Blue |
6 | UART RX3 | Yellow |
7 | UART TX3 | Green |
8 | BRAKE | White |
Speed Sensor Connection (P2)
Connection Number | Display Connection | Wire Color |
1 | UART TX2 | Blue |
2 | UART RX2 | Green |
3 | SWCLK | Yellow |
4 | GROUND | Black |
5 | 5V DC | Red |
6 | SWDIO | Gray |
7 | SPEED | White |
