X1 Pro Gen 4: Replacements & Servicing
📄

X1 Pro Gen 4: Replacements & Servicing


In some cases, it may be needed to replace the components of the kit. Below, you will find guidelines on how to perform these replacements using standard tools as well as the CYC Official Distributors & OEM Tool Kit.

Struggling with anything? Contact us


Table of Content

X1 Pro Gen 4: Replacements & Servicing DirectoryX1 Pro Gen 4 Sprag Clutch Replacement Guide Bottom Bracket ThreadsGrease Types & Application


Directory

  1. 📄 X1 Pro Gen 4 - Gearbox Replacement Guide
  2. 📄 X1 Pro Gen 4 - Freewheel & Chainring Replacement Guide
  3. 📄 X1 Pro Gen 4 - X12 Controller Replacement Guide
  4. 📄 X1 Pro Gen 4 - Freewheel & Torque Sensor Disassembly Guide
  5. 📄 X1 Pro Gen 4 - Freewheel & Torque Sensor Reassembly Video Guide
  6. 📄 X1 Pro Gen 4 - 11T Sprocket Disassembly Guide


X1 Pro Gen 4 Sprag Clutch Replacement Guide

Sprag Clutch Removal & Replacement.pdf
pdf


Bottom Bracket Threads

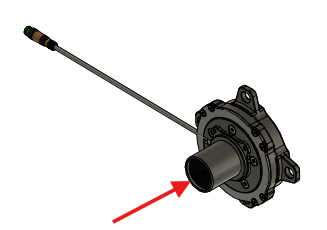

Gen 3/4 Freewheel threads are M28*1.


Grease Types & Application

Grease Type

Reference Image

Application

Amount

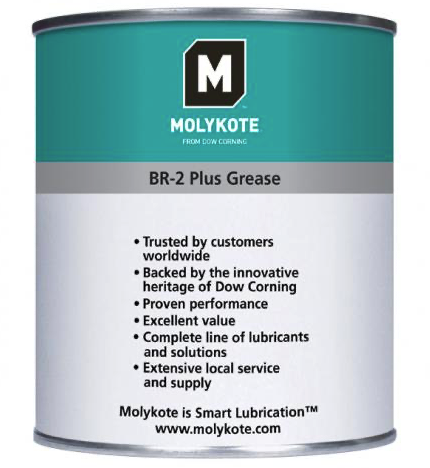

Molykote  BR2 Plus

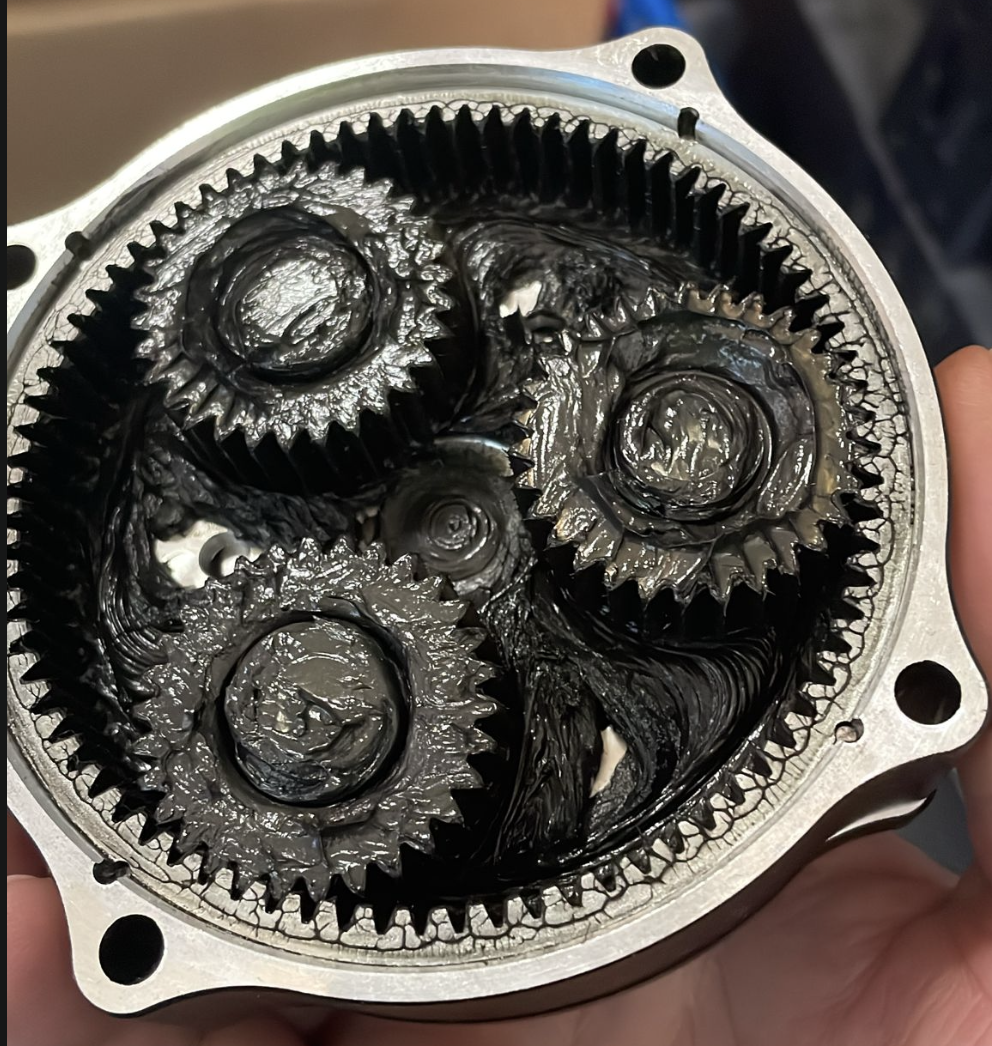

Gearbox

12-15g

High vacuum grease P/N:7501


Spindles and Bearing Covers


Multitop KP2N-40 DIN 51825


Sprag Clutches
Freewheels
